Inch Cam Followers CF CCF 6 SB Bearings

1.We have CCF 6-SB Roller Bearing in stock.

2.Other series Cam Followers available.

3.Same quality as MISiM quality.

4.We can provide free sample for test before order .

Item No :
BPZ01-d12
Order(MOQ) :
1000
Payment :
100% TT payment in advance
Product Origin :
China
Shipping Port :
Xiamen ,Shanghai,Ningbo,Guangzhou,Tianjin
Lead Time :
5-7 days
Weight :
136g

Product Details

Cam followers, also known as cam follower bearings or track rollers, are precision components used in various mechanical systems to convert rotary motion into linear motion or to guide and support moving parts.

Heavy Duty Cam Follower Bearing Introduction

Part Number	CCF-6-SB CCF-6-B CCF6SB
Material	Outer ring material: Chrome steel Roller material:Chrome steel Stud material：20CrMo
Dimension	Outside diameter：152.4mm Stud diameter:63.5mm Overall width:236.5mm Outer ring width:82.55mm
Service	Customized service available,free sample can be provide before order

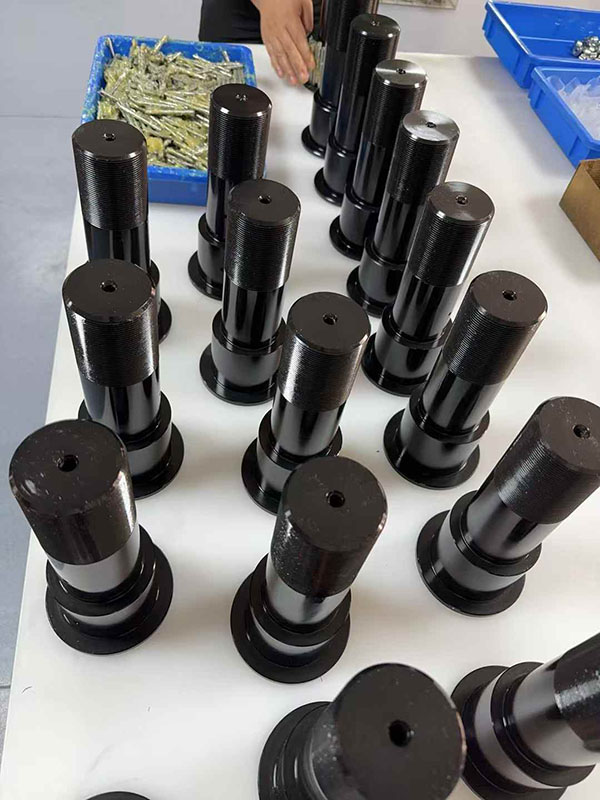

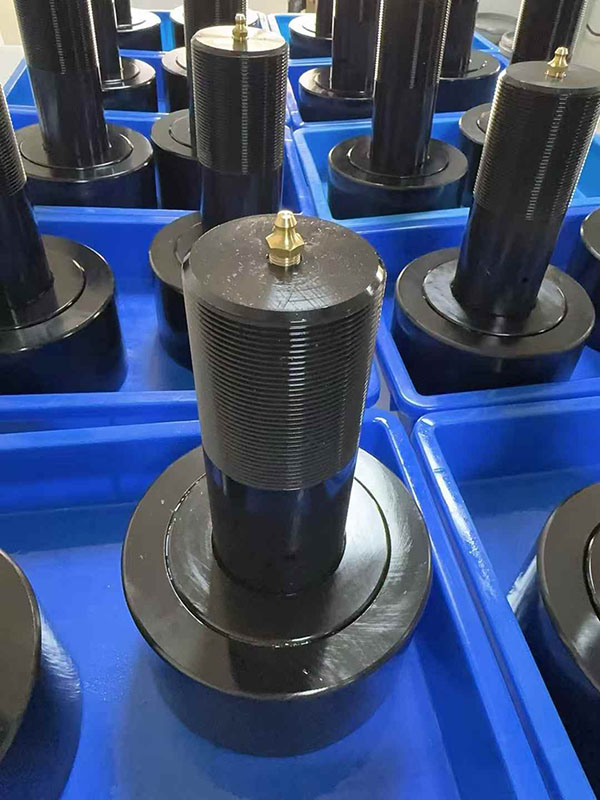

CCF 6 SB Inch Cam Follower Pictures:

Cam followers are typically made with needle bearings that can accept radial loads but cannot accommodate thrust loading. They are available in both metric and inch series and come in different types such as standard, crowned outer ring, dynamic loading, heavy-duty, and custom-designed cam followers. The choice of cam follower depends on the specific application requirements, including load capacity, speed, and environmental conditions.

MORE BEARINGS can produce more inch stud type track roller,below here is part of our catalog for your reference:

Unseal No.	Sealed No.	Roller Dia. (RD)	Roller Width(W)	Stud Dia. (SD)	Stud Lgth (SL)	Min Thrd Lgth (TL)	Fine Threads	Lub Fiting Size (F)	Recom Toque Lbs	Static Capacity Lbs	Dynamic Cpacity Lbs
CF-1/2-N	CF-1/2-N-S	0.5	0.344	0.19	1/2	1/4	10-32	1/8	15	720	620
CF-1/2	CF-1/2-S	0.5	0.375	0.19	5/8	1/4	10-32	1/8	15	790	680
CF-9/16	CF-9/16-S	0.5625	0.375	0.19	5/8	1/4	10-32	1/8	15	790	680
CF-5/8-N	CF-5/8-N-S	0.625	0.406	0.25	5/8	5/16	1/4-28	1/8	35	1065	930
CF-5/8	CF-5/8-S	0.625	0.4375	0.25	3/4	5/16	1/4-28	1/8	35	1215	955
CF-11/16	CF-11/16-S	0.6875	0.4375	0.25	3/4	5/16	1/4-28	1/8	95	1215	955
CF-3/4	CF-3/4-S	0.75	0.5	0.375	7/8	3/8	3/8-24	3/16	95	2065	1660
CF-7/8	CF-7/8-S	0.875	0.5	0.375	7/8	3/8	3/8-24	3/16	250	2065	1660
CF-1	CF-1-S	1	0.625	0.4375	1	1/2	7/16-20	3/16	250	3060	2225
CF-1 1/8	CF-1 1/8-S	1.125	0.625	0.4375	1	1/2	7/16-20	3/16	350	3060	2225
CF-1 1/4	CF-1 1/4-S	1.25	0.75	0.5	1 1/4	5/8	1/2-20	3/16	350	4250	3930
CF-1 3/8	CF-1 3/8-S	1.375	0.75	0.5	1 1/4	5/8	1/2-20	3/16	650	4250	3930
CF-1 1/2	CF-1 1/2-S	1.5	0.875	0.625	1 1/2	3/4	5/8-18	3/16	650	5640	4840
CF-1 5/8	CF-1 5/8-S	1.625	0.875	0.625	1 1/2	3/4	5/8-18	3/16	1250	5640	4840
CF-1 3/4	CF-1 3/4-S	1.75	1	0.75	1 3/4	7/8	3/4-16	3/16	1250	7920	6385
CF-1 7/8	CF-1 7/8-S	1.875	1	0.75	1 3/4	7/8	3/4-16	3/16	1500	7920	6385
CF-2	CF-2-S	2	1.25	0.875	2	1	7/8-14	3/16	1500	10570	8090
